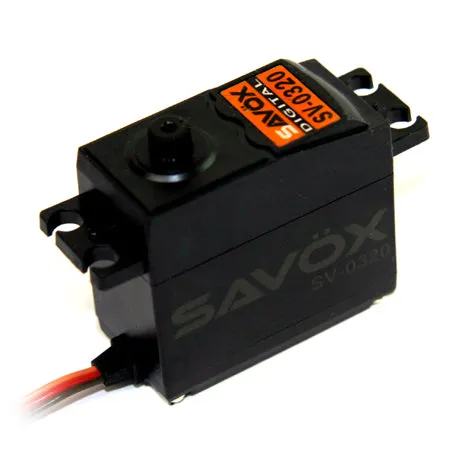

Name: Discontinued - Use SV0320P - SV0320 - High Voltage Standard Digital Servo 0.13/83.3 @ 7.4V
SKU: 890399

The SV-0320 is a budget-friendly, standard digital servo which is capable of running on higher voltage than most standard servos.

Features:

Capable of HV operation.

Industrial plastic gear allows for a smooth, quiet operation yet remains durable.

Specifications:

Torque @ 6v - 4.5kg/62.5oz-in

Torque @ 7.4v - 6.0kg/83.3oz-in

Speed @ 6v - 0.16 sec/60 deg

Speed @ 7.4v - 0.13 sec/60 deg

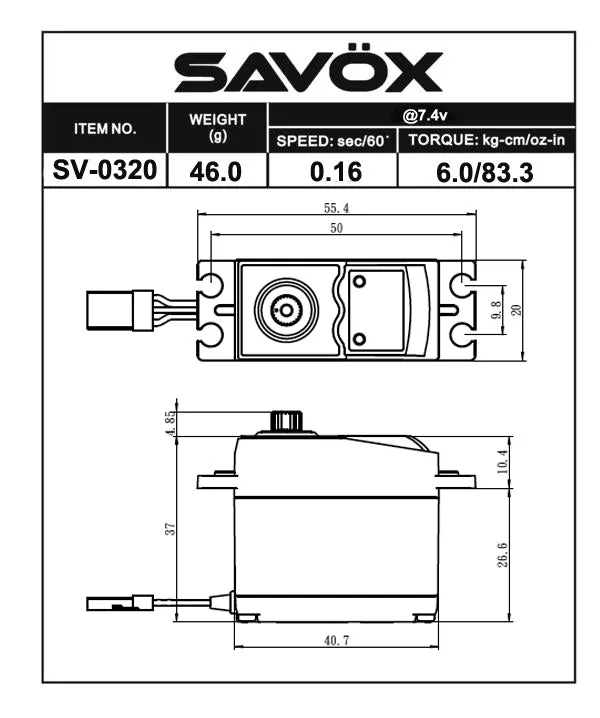

Dimensions L x W x H (mm): 40.7 x 20.0 x 37.0

Weight: 46.0g

Technical Details

Operating Temperature: 14° - 122°F (-10° - 50°C)

Running Current (no load): 180mA @6.0V, 240mA @7.4V

Stall Current (at locked): 1300mA @6.0 V, 1600mA @7.4V

Idle Current: 5mA @6.0V, 5mA @7.4V

Wire Length: 300 ± 5mm

Output Gear Spline: 25 Tooth

Bearings: 1BB

Operating Travel: 120° (1000 → 2000 µ second)

Neutral Position: 1500 µ second

Pulse Width Range: 800 → 2200 µ second

Maximum Travel: Appx 164° (800 → 2200 µ second)

Refresh Rate: 240 Hz

Motor Type: Brushed
